Product Description

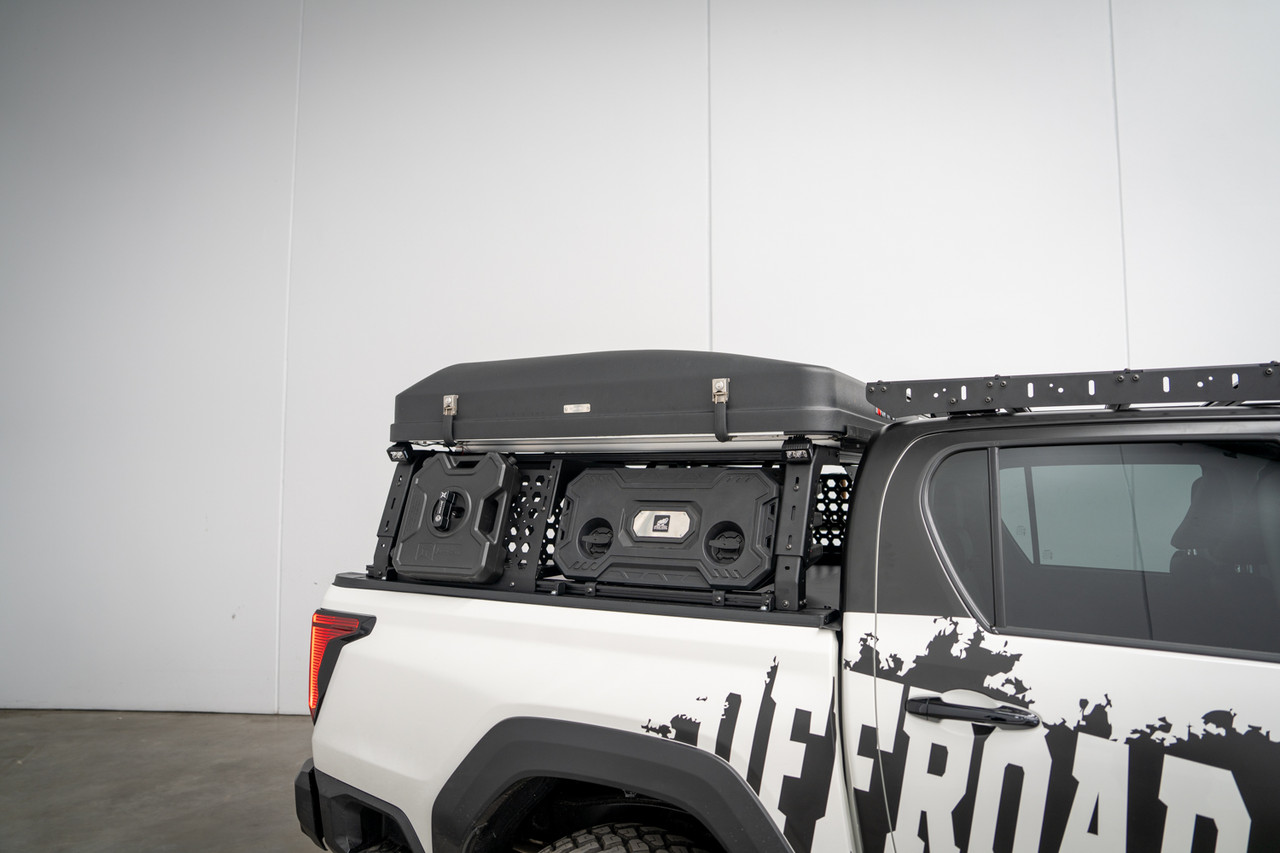

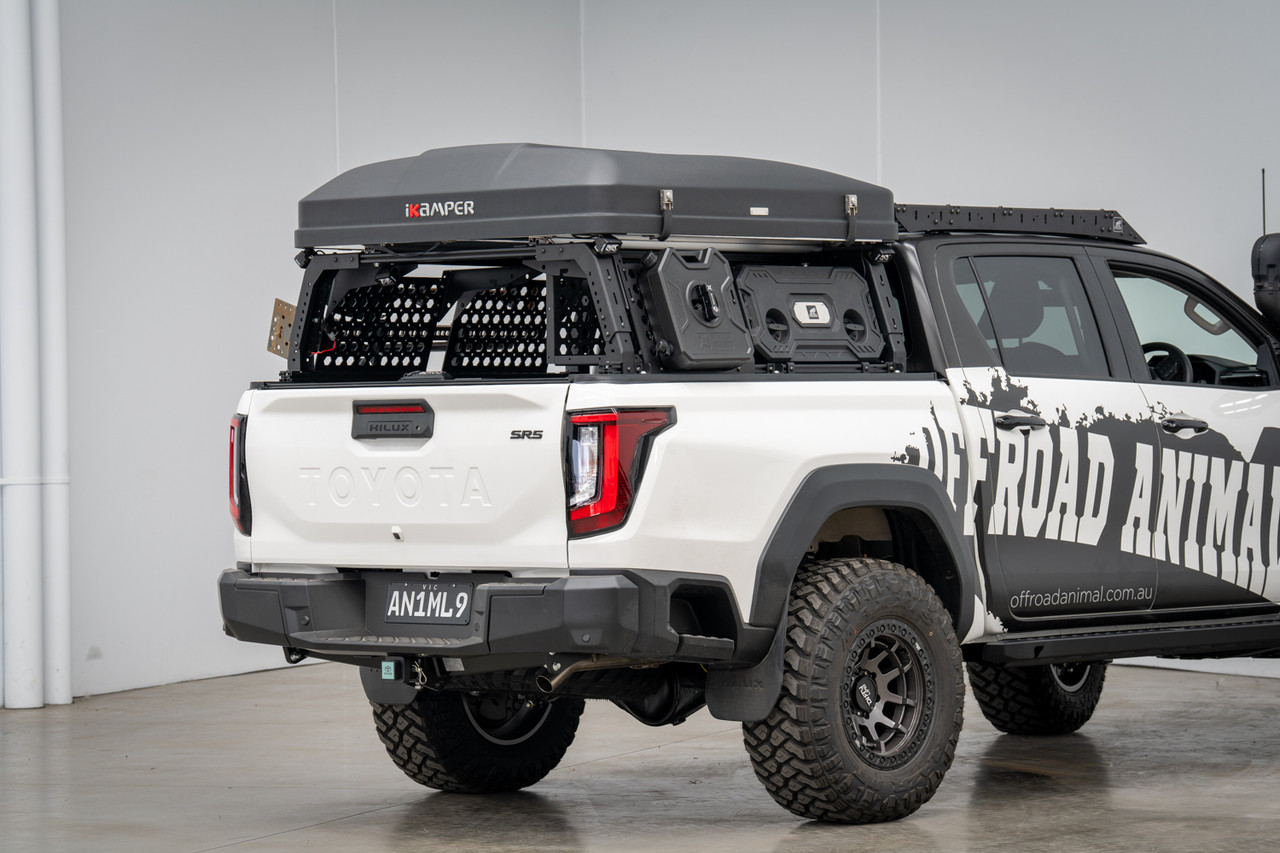

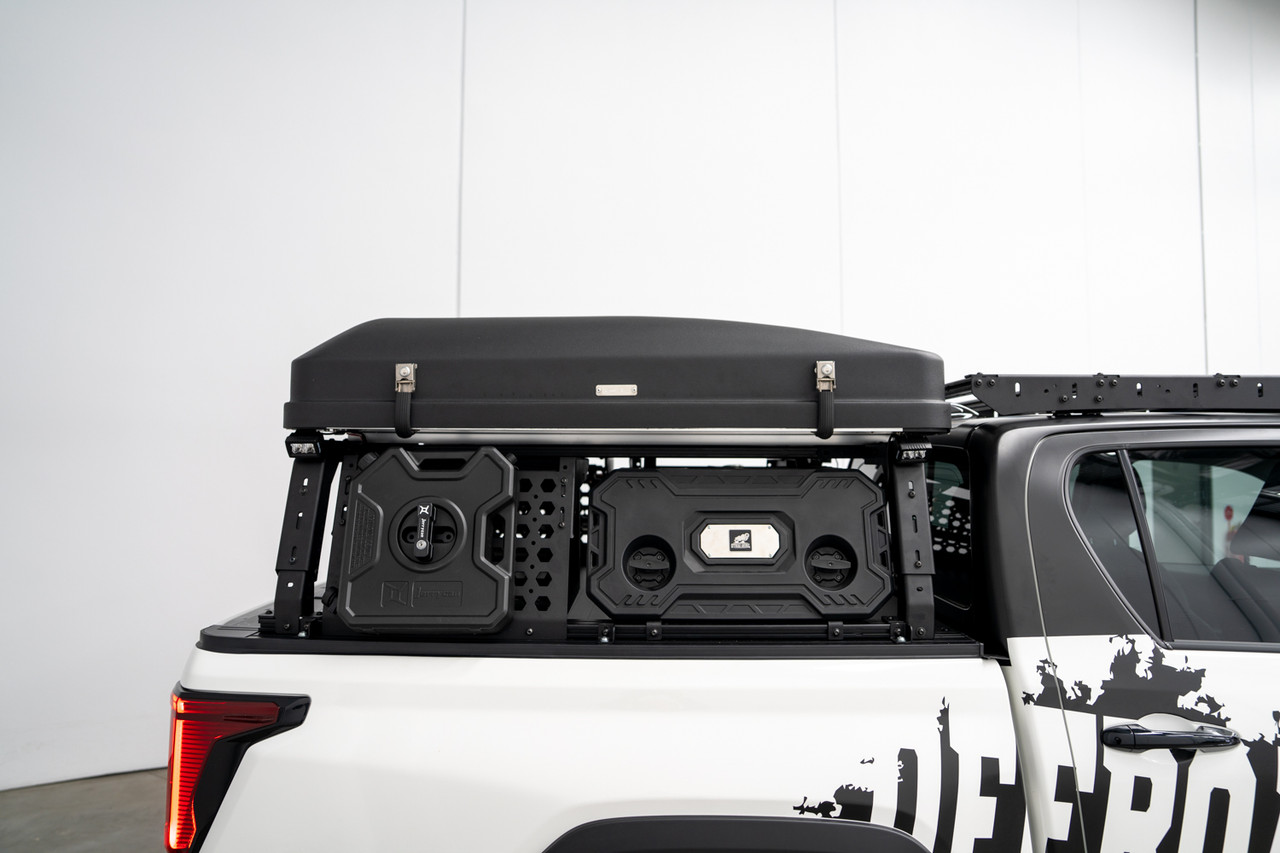

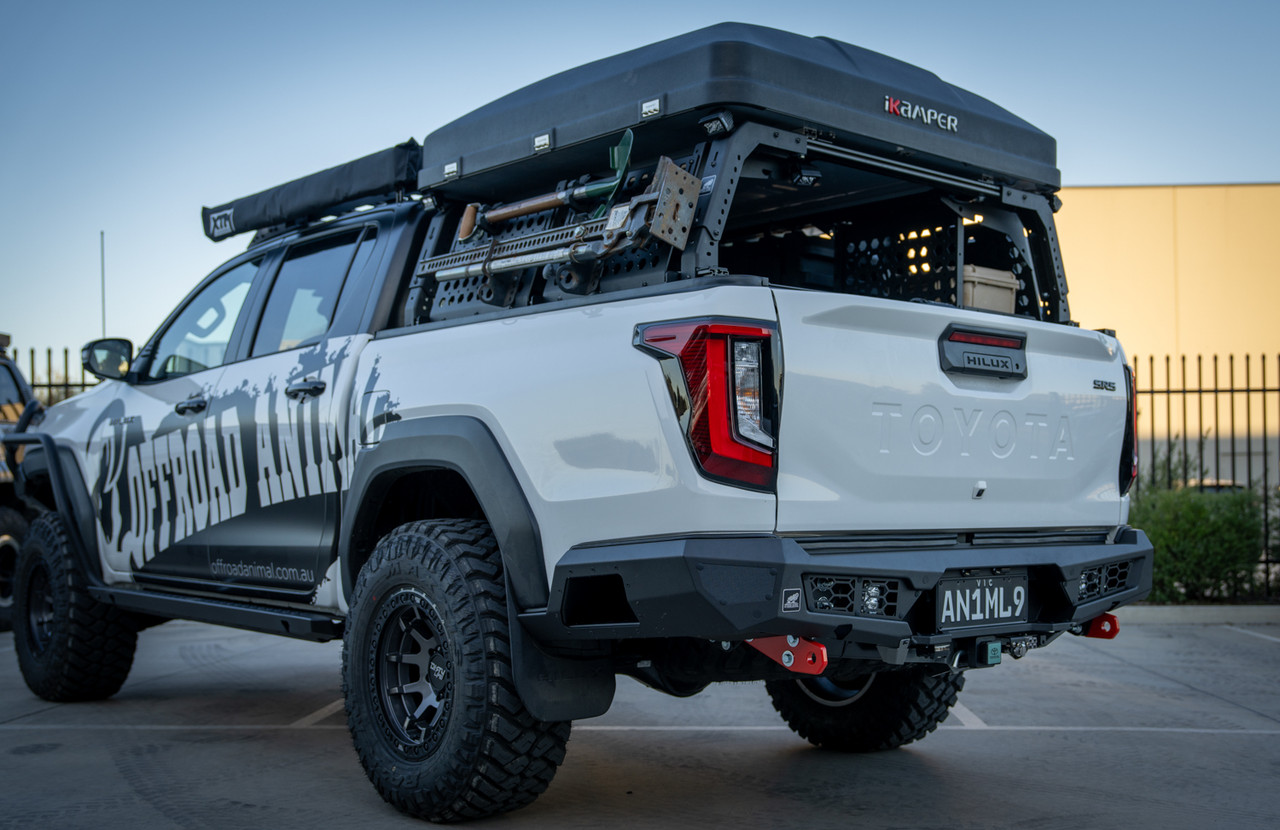

This tub rack is pretty exceptional. It's a super strong and versatile base rack that can be upgraded with tons of cool fittings to make it super functional. It's also very adjustable to suit every situations. You can adjust the width and the height of the rack. The width allows it to suit most Ute tubs, and the height allows you to either keep it low for better fuel economy or up high for maximum gear storage or a full length roof top tent.
Features and Benefits
- Super light weight, with base rack only weighing 23kg and mostly made from aluminium
- 200mm of height adjustment

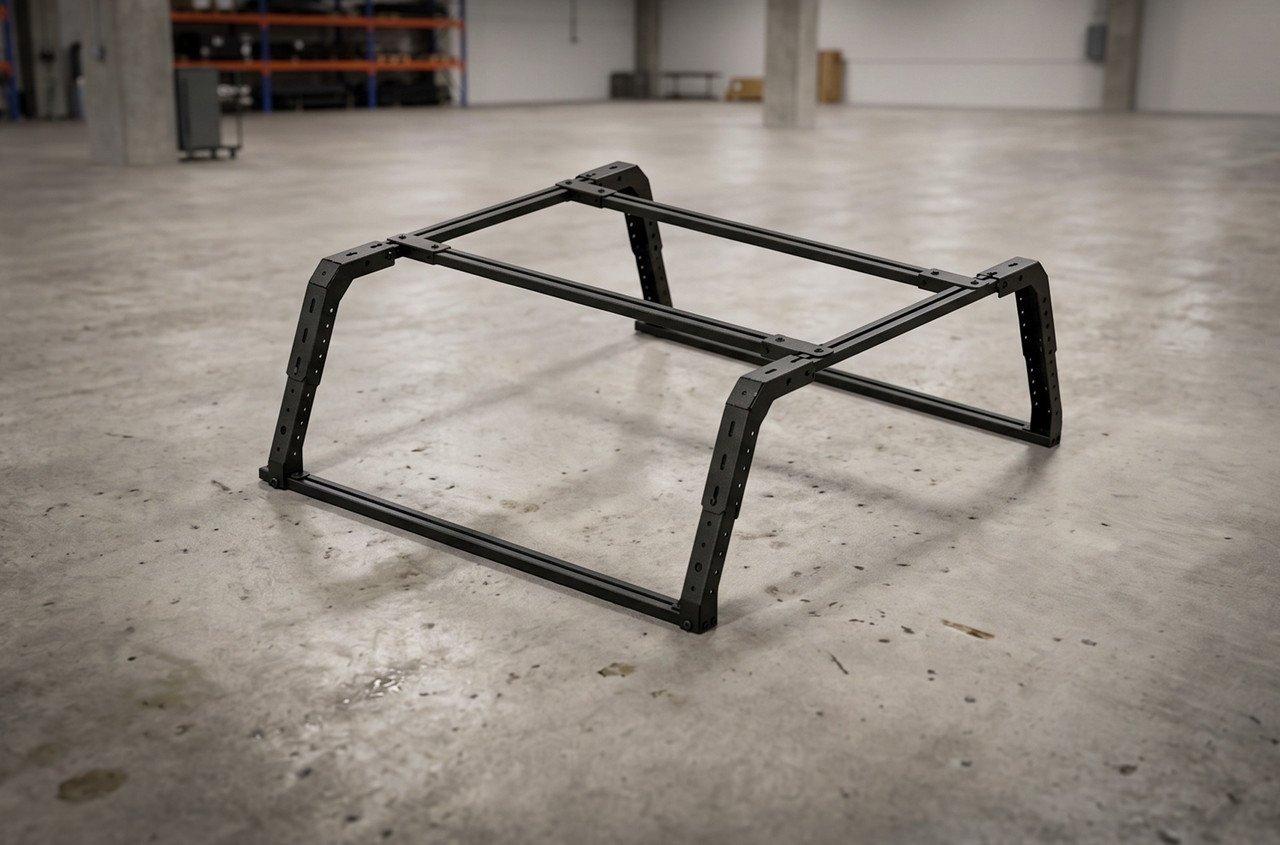

- Top setting is 565mm from base, bottom is 365mm
- Width adjustable, 1610mm is narrowest width at highest setting and 1905mm at the widest while up high

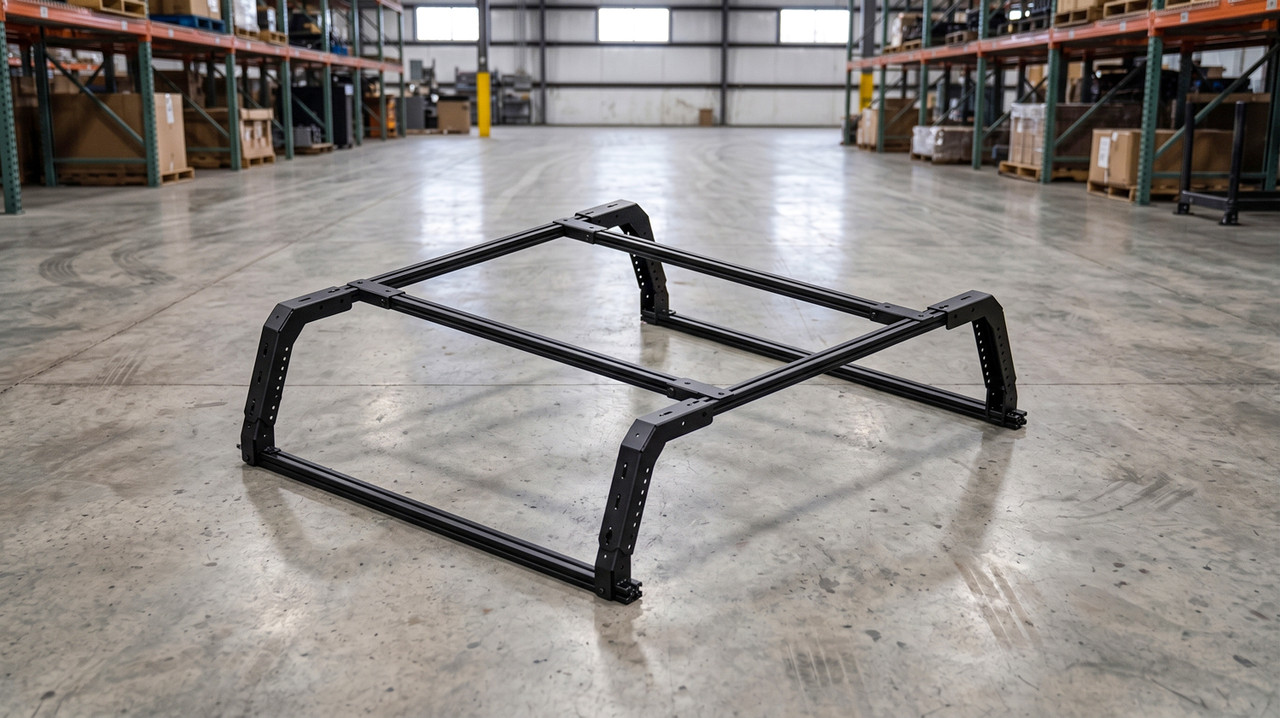

- At the lowest setting it's 1465mm wide at the narrowest, and up to 1760mm wide at it's widest.
- Length of the rack is 1375mm
- The long sections are tough aluminium extrusion with T-Slots around all sides that take standard M8 hardware.
- Matte black powder coated components
- Optional extras include
- 50Lt lockable Storage box measuring 630mm x 300mm x 480mm externally
- 92Lt lockable Storage box measuring 1,100mm x 300mm x 480mm externally

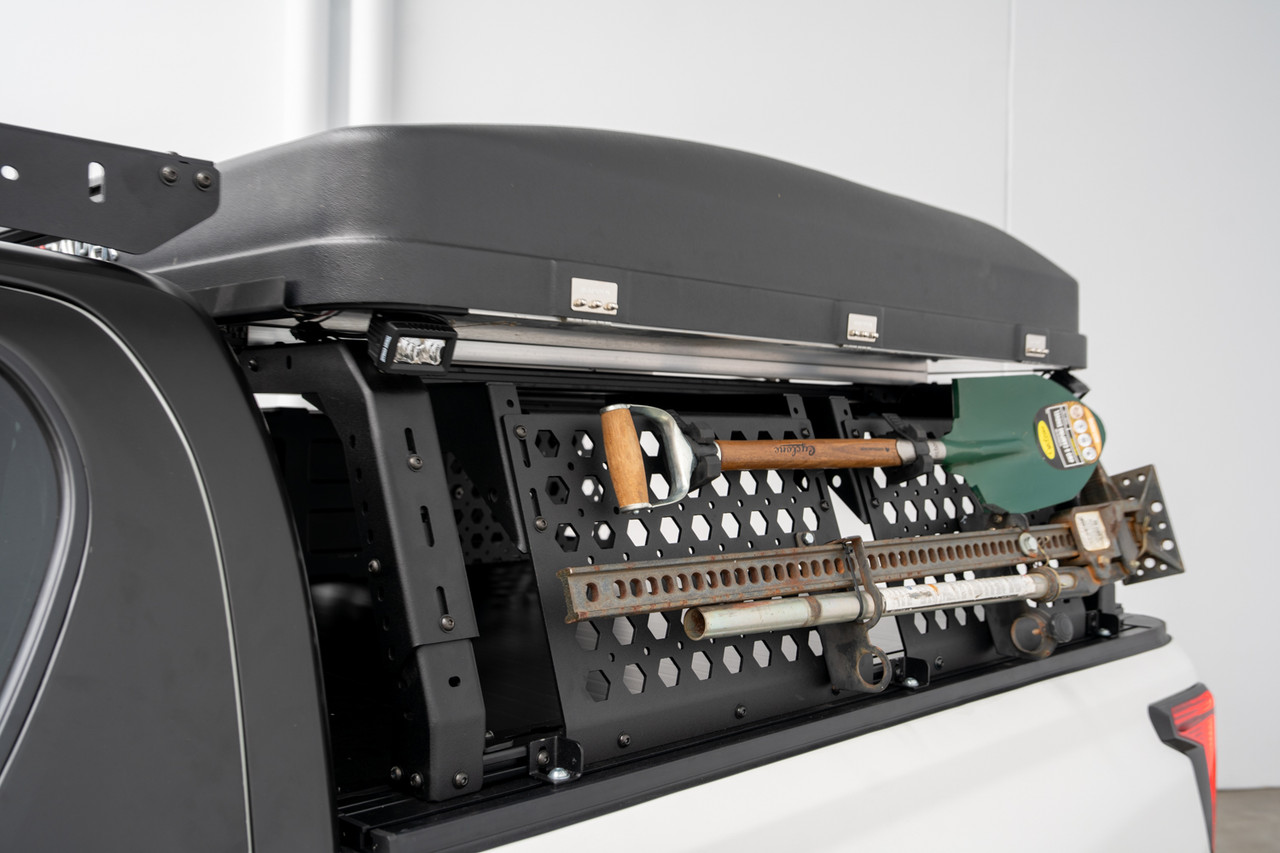

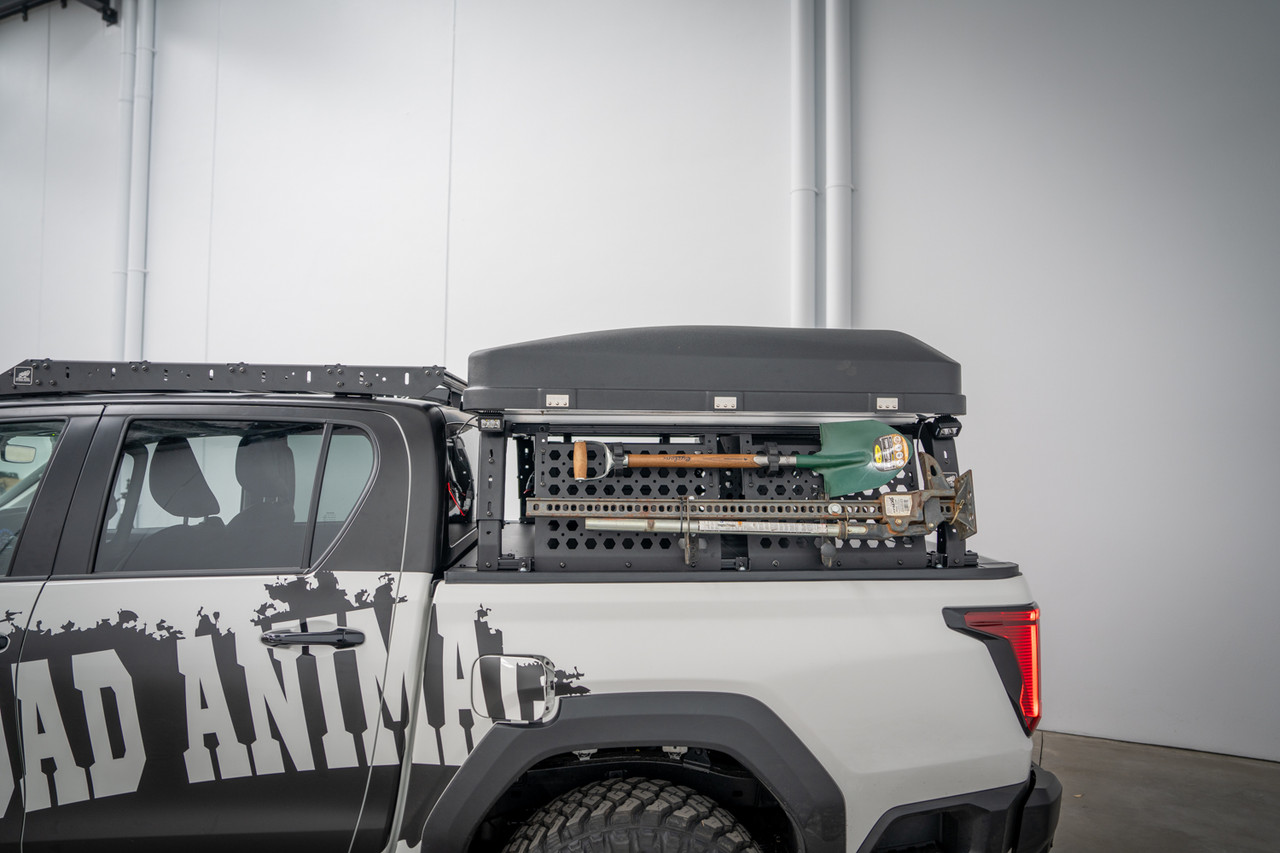

- Molle panels for low setting measuring 500mm wide by 350mm tall
- Molle panels for high setting measuring 500mm wide by 525mm tall

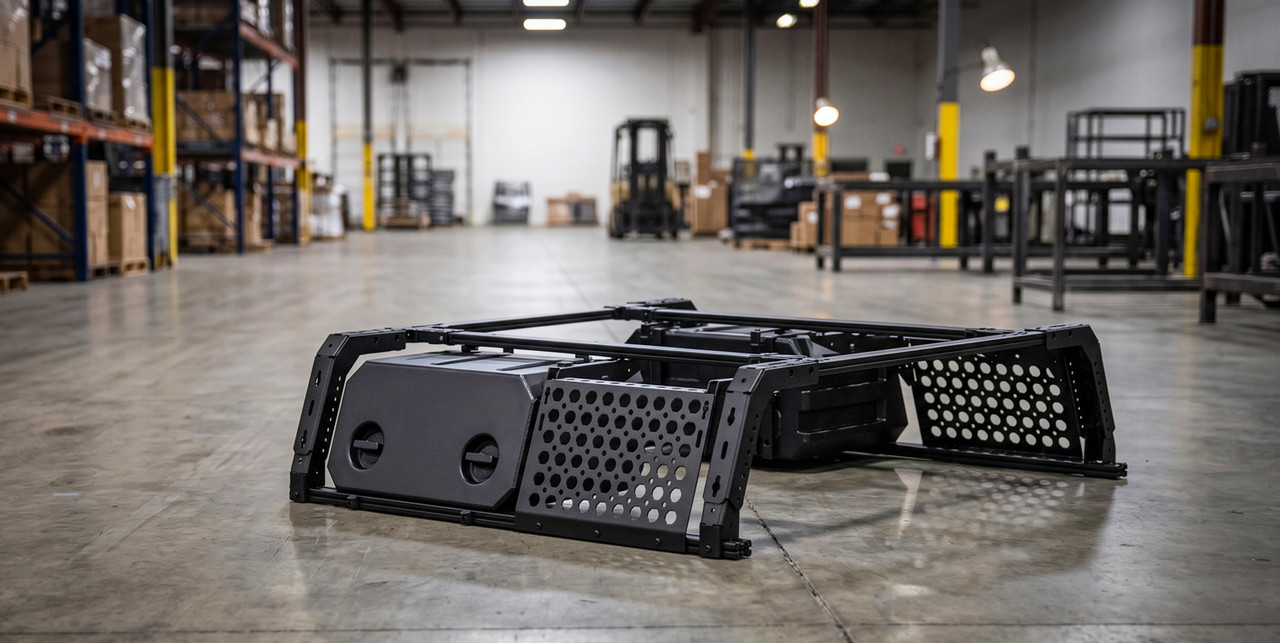

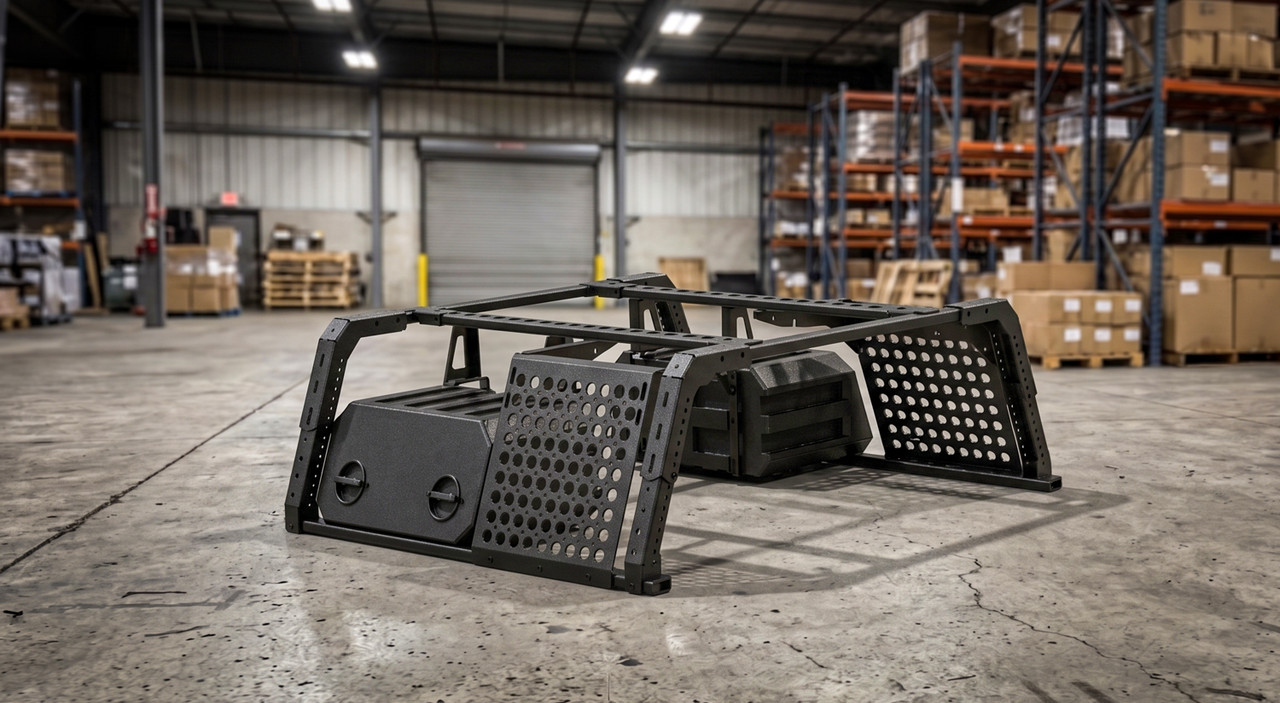

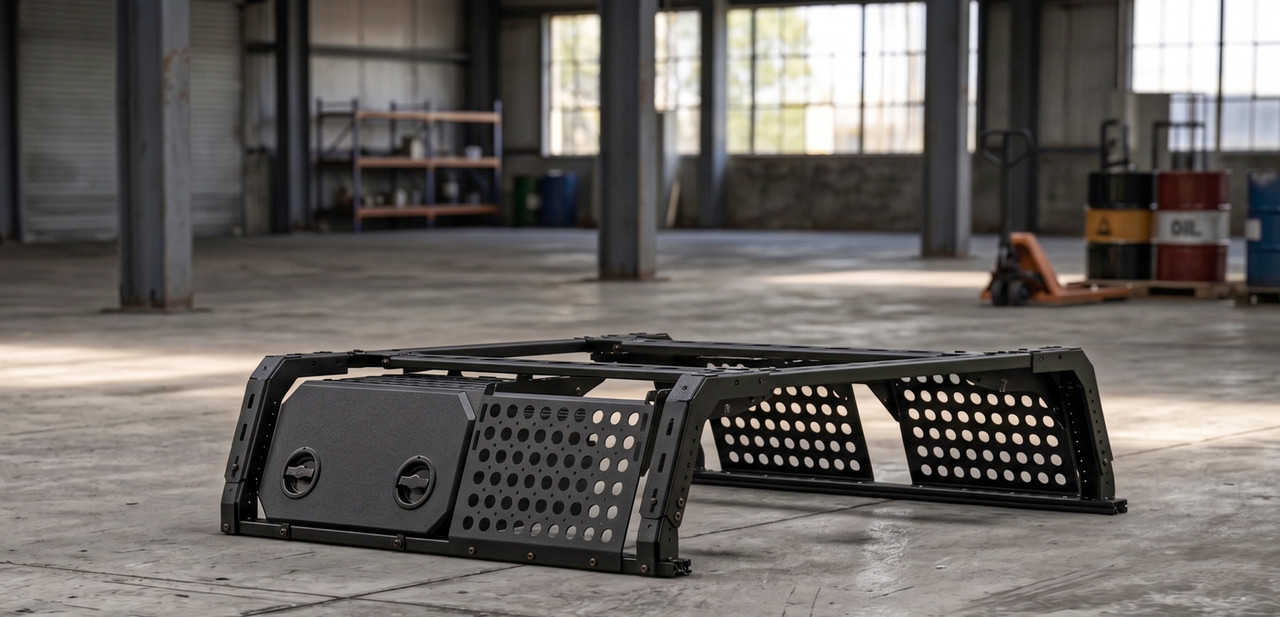

- Full modular allowing you to run zero, one or two tool boxes. Or one, two, three, or four molle panels. You can also mix it up and run a combination of them.
What's included in the box:
2 x extrusion lengths (aluminium) at 1150mm long
2 x extrusion lengths(aluminium) at 1200mm long
2 x extrusion lengths(aluminium) at 1375mm long
2 x lower mounts rear aluminium)
2 x lower mounts front (aluminium)
4 x upper mounts (aluminium)
4 x cross joiner brackets (steel)
6 x angle mounting brackets (steel)
1 big back of hardware
