Product Description

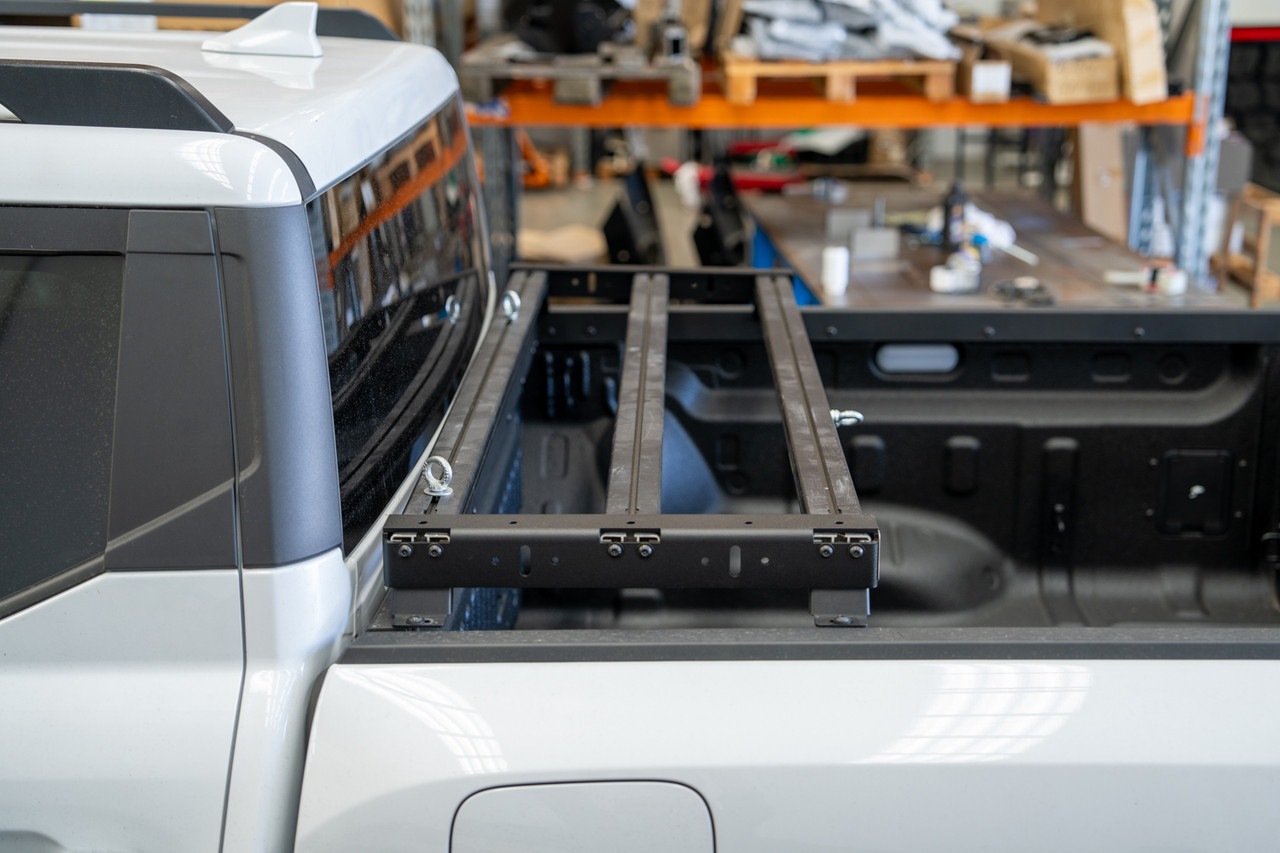

Do you struggle for room in the back of your ute, and wish you could use the area above the tub? This platform is perfect for utilizing that space. Works just like any other Offroad Animal Roof rack, with all the same cool features. Fits Standard M8 bolts and nuts to mount just about anything
Choose from our low legs which only lifts the top of the rack 90mm over the bed
or choose our taller legs which lift the top of the rack 265mm over the bed (perfect for roller shutters that roll up above the base level)
Full width of the rack is 10mm wider than your selected extrusion.
length is 500mm, the weight of the kit with low legs is 12.2kg and tall legs is 14.4kg
Benefits
- Utilize dead space above tub
- Mount any accessory easily and quickly
- Universal style fits over most roller shutters, or no roller shutter
- Keep your gear and weight low
- Lets be real, this rack is the best looking one on the market
- Easy to put together
Features
- Rack fully made from 5mm structural Aluminium sides and heavy duty formed aluminium extrusion
- 3mm Steel feet (4) adjustable to suit any width tub up to 1545mm wide
- T slots in rails take standard M8 nuts and bolts so no need to buy special nuts. Rails have T slot on all 4 sides.
- Works with any accessory on the market that mounts to a flat surface
- Slots on side faces perfect for using hooks on straps like ratchet or cam buckle
- Light weight at only 12kg
- Top surface of rack only sits 90mm off mounting surface with the low leg kit, to keep weight low
- Great for mounting things like Roof top tents, storage boxes, chairs and water tanks. The list is actually endless
- Powder coated matte black
- Rated to carry 350kg static (sitting still) and, 150kg offroad by itself. You still need to abide by your specific tub rating for weight carrying capacity.
- Mounts to almost any tub top with or with out roller shutters.
- Rack measures 500mm long and 1510mm wide and 90mm high
If you have a Ranger or Raptor don't forget to get a tub brace kit as they can be prone to cracking
What is included in the box:
- 3x Cross rails
- 2x side rails
- 4x mounting feet
- 2x logo plates
- 1 x bag of hardware
Install time: 2-3 hours
Install difficulty: 2 for roller shutters with T slots, 5 for top of tub with no roller shutter.
Click fitting tab to download fitting instructions
