DIY bull bar installation: How to fit a bull bar on your 4x4

DIY bull bar installation: How to fit a bull bar on your 4x4

Posted by Dave Fitzpatrick on 29th Aug 2025

Thinking about fitting your own bull bar? This guide is used for Offroad Animal’s full bumper-replacement bar. Below, you’ll find the steps, tools and checks to complete a clean, compliant install.

This installation guide is written by Dave Fitzpatrick - CEO Offroad Animal.

Dave Fitzpatrick is the founder of Offroad Animal and a veteran 4WD parts engineer with hundreds of bull bar installations to his name. After co-founding another Australian 4x4 brand, he launched Offroad Animal in April 2019, leading a team of qualified engineers who design and test in Australia. Dave’s focus is simple: gear that looks sharp, fits right, and works hard on real tracks. Based in Mornington, Victoria, he still spends plenty of time off-road putting new designs through their paces.

Installation Guide Overview

DIY Bumper Removal: Removing the old bumper can take 1-2 hours:

The good thing about Offroad Animal bull bars is that most of them are a full bumper replacement, so there’s no need for any cutting, and it fits quite snug. For those that do require cutting we supply super detailed instructions.

  • Pop the bonnet and remove the top radiator shroud by lifting the plastic clips (a flathead works well). Next Remove all the fasteners holding the bumper to the wheel well liners and underneath to all support brackets. The bumper should now peel off starting near the wheels— support it as you disconnect any remaining plugs.
  • On the removed bumper, take out the factory, fog lights, radars, cameras and parking sensors. Some models keep the factory sensor mounts, otherwise we’ll provide new mounts for all that gear. On the bull bar, mount all that gear with supplied brackets or reuse the factory ones as instructed.

DIY Bullbar Installation: Installing a bullbar can vary significantly. Some installations can take 4-5.5 hours, especially if it includes things like camera/radar relocations, chassis brackets, or extra wiring.

  • Fit chassis mounts and recovery points - Bring the bar mounts up to the chassis rails and reuse the factory bolts where specified. Some kits include nut plates that slide inside the chassis with different sizes each side (e.g., M10 one side, M12 the other) — orient them as marked.

  • Set mount width and trial-fit the bar - measure the bar between its inner faces (example: ~780 mm). Set the chassis mounts about 2–3 mm wider than the bar so it slides on easily. Lift the bar (table or two people) and slide it onto the mounts.

  • Final alignment and tighten - re-check that 15–20 mm gap around the headlights, guards and grille. Square the bar to the body, then tighten the chassis mounts and bar bolts. Refit the factory grille using its clips and the centre screw you saved.

Professional vs. DIY: While you can do it yourself, professional installation is recommended for proper fit and to ensure compliance with any necessary regulations or safety standards.

  • DIY: Saves labour, flexible timing; needs solid mechanical skills, correct tools and workspace.

  • Professional Installation: Faster, tested fit and wiring, advice on aftercare, warranty on workmanship, ideal for complex tech or when cutting/drilling is required.

Tip: Get two local quotes and compare them with your time and tool costs.

Tools Needed:

  • Flat-head screwdriver
  • Phillips-head screwdriver
  • Socket and spanner set
  • Razor blade or utility knife
  • Cable ties
  • Bull bar and mounting kit (including brackets, bolts, and washers)

DIY Bull Bar Installation

Here’s how to fit a bull bar on a typical modern 4x4 ute using a popular full bumper–replacement. This installation process walks you through a clean DIY installation: you’ll strip the front end, move your factory lights and sensors, bolt up the mounts and mounting brackets, set panel gaps, fit accessories (winch, fairlead, hoops/driving lights), then finish with mesh, bash plates and under-panels. Follow the steps below for a tidy 4x4 bull bar installation at home. If you prefer professional installation, skip to the notes for when it’s highly recommended.

Note: Not all bull bars or vehicles are the same. Steps can vary depending on model (Hilux, Ford Ranger, D-MAX, etc.), the features of your DIY kit, and the maker’s hardware. Always review the manufacturer’s instructions and check that your new bull bar is suitable for your vehicle before you purchase.

Recap on Tools Needed:

  • Flat-head screwdriver
  • Phillips-head screwdriver
  • Socket and spanner set
  • Razor blade or utility knife
  • Cable ties
  • Bull bar and mounting kit (including brackets, bolts, and washers)

Before you start: safety, tools and prep

  • Park on level ground, chock the rear wheels and disconnect the battery earth if doing any electrical work — safety first.
  • Lay out moving blankets and or cardboard to protect paint and lights.
  • Tools/equipment: socket set , Torx/Phillips drivers, flathead trim tool, ratchet spanners, torque wrench, side cutters, sharp utility knife, cable ties, thread locker, masking tape/marker.
  • Helpful gear: adjustable lifting table or a mate to help lift the bar.
  • Read and review the bar’s manufacturer’s instructions end-to-end and label factory bolts as they come off.
  • Thinking about bull bar installation cost? Doing the job yourself saves money on labour, but professional fitting is highly recommended if the bar is heavy, wiring is complex, or modifications are required.

Step-by-step 4x4 bull bar install guide

1) Strip the front end

Pop the bonnet and remove the top radiator shroud by lifting the plastic clips (a flathead works well). Don’t miss the small Phillips screw in the centre of the grille — you’ll reuse it. Remove screws underneath the front bumper (centre and outer). Work along the top and sides to release the remaining clips, then undo the inner wheel-liner clip and a small screw inside the liner. Unplug the fog lights loom and front sensor wiring. Remove the lower air dam. The bumper should now ease off — support it as you disconnect any remaining plugs.

2) Move lights and sensors across

On the removed bumper, take out the factory indicators, fog lights and parking sensors. Keep the sensor housings — you’ll reuse them. To release a sensor, pry the two side tabs and lift it out; push the housing forward through the front to remove. On the bull bar, push the housings in from the front until they click, then seat the sensors. Mount fogs/indicators from the rear using M6 button-head bolts. If captive clips feel tight, open the legs slightly with a screwdriver.

3) Support the headlight edges

Remove the bumper-retainer brackets near the headlights (bolt, screw and a clip). Fit the small replacement bracket supplied with many bars to tie the headlight edge to the body — reuse the lower factory bolt and add the supplied M6 up top. Correct position here helps the installation look factory once complete.

4) Fit chassis mounts and recovery points

Offer the bar mounts up to the chassis rails and reuse the factory bolts where specified. Some kits include nut plates that slide inside the chassis with different sizes each side (e.g., M10 one side, M12 the other) — orient them as marked. Snug everything but don’t fully tighten yet. These are your main mounting brackets, so take your time.

5) Set the mount width and trial-fit the bar

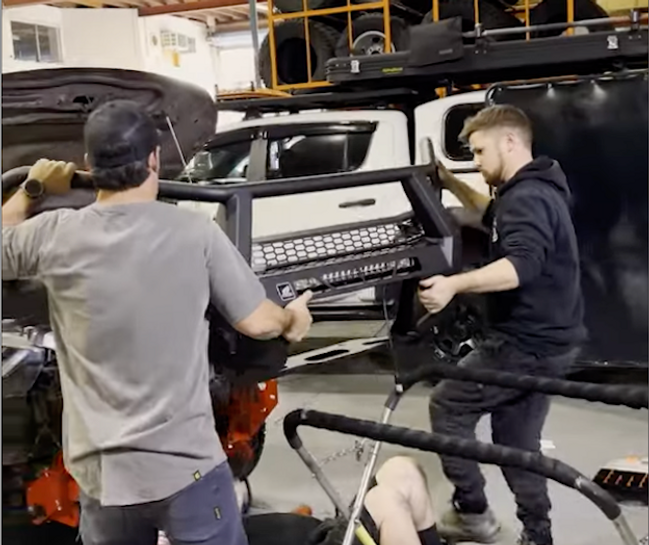

Measure the bar between its inner faces (example: ~780 mm). Set the chassis mounts about 2–3 mm wider than the bar so it slides on easily. Lift the bar (table or two people) and slide it onto the mounts. Aim for a 15–20 mm gap all around between bar and body panels. Once you’re happy, fit the main mounting bolts and nip them up, leaving a little movement for fine-tuning.

6) Wire lights and driving lamps

If you’re adding a pair of driving lights, a piggyback high-beam adapter loom makes life simple — no cutting, just plug-in at the back of the headlight. Route the wiring neatly, tie back to the bar’s anchor points and keep it clear of sharp edges and hot spots. Plug the factory fogs/indicators/sensors into the bar. Test high/low beam, indicators, parkers, fog lights and parking sensors now.

7) Winch and fairlead (optional now or later)

Most Offroad Animal bars accept a winch feet-down. Feed the positive/negative cables into the engine bay before lifting the winch in. Bolt it from underneath, route the cables to the battery (away from moving parts) and mount the control box per the manufacturer’s instructions. Bolt the fairlead to the centre mesh panel, feed the rope through and add a number-plate flip bracket so the plate can sit over the fairlead when not in use.

8) Mesh panels, bash plates and under-panels

Fit the centre mesh first. The outer mesh has a small lip that sits inside the bar — don’t get caught out. Leave the lower pair of holes free for now, as the bash plate shares those bolts. Fit the alloy/steel bash plate to the bar with the supplied M8 button-heads, then refit the factory bash plate underneath using the original hardware.
At the wheel liners, hold the new under-panels in place and mark the liner. Trim a narrow strip at the top with a sharp blade; leave it a touch long so the outer panel captures the liner edge. Bolt the under-panels up with M6 × 16 button-heads into cage nuts (open the cage slightly with a flathead if needed).

9) Final alignment and tighten

Re-check that 15–20 mm gap around the headlights, guards and grille. Square the bar to the body, then tighten the chassis mounts and bar bolts to the maker’s torque specs. Refit the factory grille using its clips and the centre screw you saved. Wipe fingerprints off the powdercoat, stick on the logo plate and fit the compliance plate where required. Do a full function test: indicators, fog lights, park sensors, driving lights and winch. That’s a bull bar installed correctly.

Legal and safety checks in Australia

ADR rules and state regulations cover airbags, lighting and number plates, and skipping them can affect roadworthiness and insurance. Use the quick checks below to keep your installation compliant and trouble-free. For complex modifications or airbag integration, professional installation is highly recommended.

  • Make sure your bar is rated and compliant for your vehicle (airbag and ADR).
  • Keep the number plate visible; use a flip bracket if you’ve added a fairlead.
  • Aim auxiliary lights correctly and wire through a fused relay with a dashboard switch triggered by the high-beams.
  • After the first drive, re-torque all accessible fasteners and check again after a week.

Benefits of DIY bull bar installation

Save money and time with a few smart habits. These tips apply whether you’re fitting a D-MAX, Hilux or Ford Ranger.

  • Pre-fit hoops and driving lights to the bar before lifting it on.
  • A small lifting table turns this into a one-person job.
  • Bag and label hardware as it comes off — you’ll reuse more than you think.
  • Test electrics/wiring at each stage so you don’t chase faults later.

DIY vs Professional Installation: what to expect

Bull bar installation cost will vary depending on the bar’s features, length of the job, materials and whether any modifications are needed. A professional fitter will handle, wiring and alignment, and many offer workmanship warranties. If you’re unsure, get quotes and take into account tool costs and your time. Heavy steel bars or complex installation steps? Professional installation is often the safer path.

Ready to fit your bull bar?

If you’d like a printable checklist, a parts list tailored to your ute, or help choosing the right DIY kit, tools and accessories, contact us now. We can arrange shipping to a commercial business address, help with purchase options, and book a workshop check after your first trip. Want it done for you? We can also install bull bars at our business location — bring the car to us and we’ll return it with the bull bar installed, aligned and tested for safety and protection.
